The Ultimate Guide to Light Modifiers

By Daniela Bowker 10 min read

Highlights

  • Manipulating and modifying light isn’t scary: we do it all the time, when we put lampshades on room lights, for example
  • Modifying light can mean softening it, restricting or shaping it or changing its color
  • There are plenty of DIY light modifier options, from bed sheets and kitchen foil to disco balls and mirrors

Being able to manipulate light might sound like something complicated that has to be done in a lab, but the truth is, you manipulate light all the time. Putting a lampshade over a light in your living room is an example–you prevent the light from the bulb bouncing all around the room and send it in one particular direction. When you use studio lights, whether in photography or filmmaking, you have a host of modifiers to help you direct light precisely how you want it. Here’s what’s on offer.

Diffuser

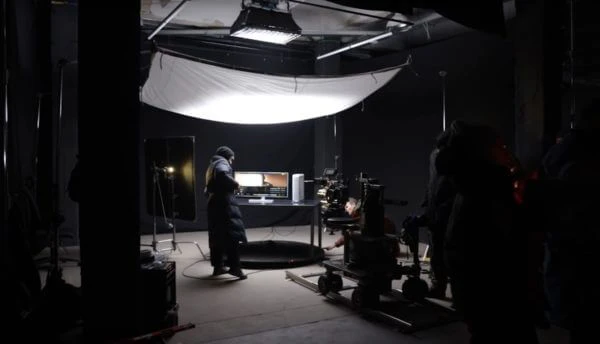

Any piece of clear fabric can be a diffuser

A diffuser helps to spread light out from its source and soften its shadows. The sun is a giant natural light source and clouds act as a diffuser for it. When it comes to studio lights, a diffuser is a piece of clear fabric that you position between your light source and your scene. You can buy them, but they are pretty straightforward to make yourself, and in a pinch, you can always use a white bedsheet!

Softbox

Softboxes are fairly self-descriptive pieces of kit. They are boxes, usually lined with reflective material, that enclose your bulb and let the light out through one diffused panel of the box. This diffusion creates soft light and shadows that are relatively easy to control and look natural. Softboxes are often the basis of the 3-point lighting setup, but being so easy to control means they can be used as key or fill lights in almost any setting.

By choosing a larger softbox you will create broader light with softer shadows. Go smaller if you want more defined shadows. And remember that by moving your softbox closer to your subject, you will increase the size of the light relative to the subject, making it softer.

The box element of a softbox can be square, rectangular, or octagonal. The chances are that when you think softbox you think rectangle, which is a great mimic for window light, but octagonal softboxes–sometimes called octaboxes–are incredibly popular. They produce very flattering wrap-around light and the most natural-looking catchlights in your subjects’ eyes. You can also buy light domes, which are very close to hemispherical, that produce very smooth, very soft light.

Grids or honeycombs

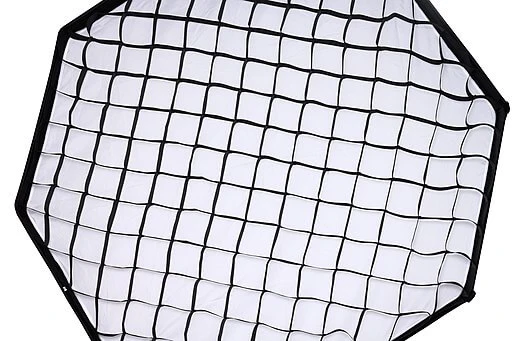

honeycomb grid lighting modifer
Photo by Dmitry Makeev

A grid or honeycomb can be fitted over a softbox to help control the spill of the light it produces. They look like bees’ honeycomb (hence being known as honeycomb grids) and are great for helping to make a beam of light that is soft but focused. Grids are especially useful if you want your subject relatively close to your background with your subject well-lit but not the background.

Barn Doors

Barn doors are metal flaps attached by hinges to the top, bottom, left, and right of a light. They allow you to shape and direct light, and prevent it from spilling where you do not want it, but don’t have an impact on the quality of light (hard or soft). By adjusting the angle at which you open or close each of the four flaps you can shape the light falling on your scene, for example, you can produce a shaft of light that looks as if it could be falling through a half-open door.

Gels

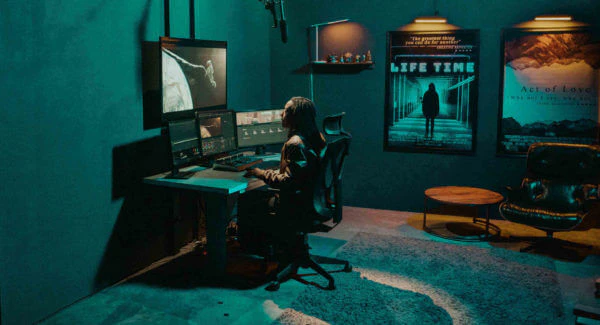

Here we used yellow gels on the lights to create a color contrast.

A gel is a colored, transparent sheet that you place over your light source to alter its hue. In the first instance, gels are useful to help you correct the color temperature of your lights so that you can achieve a more natural-looking daylight effect. However, you can use them to give a tonal feel to your films or movies, too. Maybe you want to wash everything blue or purple for a sci-fi feel, or indicate that something is a flashback or memory sequence by sending it pink. How you color your lighting can add another significant layer to your storytelling.

If you’re shooting any green screen scenes, you can use gels to help balance out any green or blue light spill that might reflect off the background.

While RGB lights offer you a range of color temperature options, there’s nothing quite like the accuracy of a gel to ensure that you get the color temperature you’re looking for. These light modifiers are pretty inexpensive, too!

Snoot

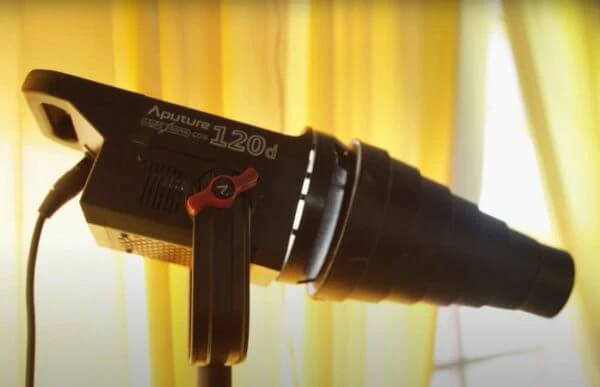

A snoot is shaped a bit like an old-fashioned megaphone, but instead of amplifying your voice, you fit it around your light source to direct it precisely and prevent light spilling into the shadows. If you want to ensure that your light has a defined edge, use a snoot. They are fairly simple to make yourself, which means that you can size them exactly as you need them, too.

Fresnel light

Fresnel lights produce soft-edged beams of light that can be used as spotlights or to wash over a given area of your set. Fresnel lights use fresnel lenses, which are concentrically stepped rather than smooth, to help concentrate the light into a manageable beam. If I tell you that it was invented by Augustin-Jean Fresnel to improve lighthouse lanterns, it should help you to understand the kind of light it produces.

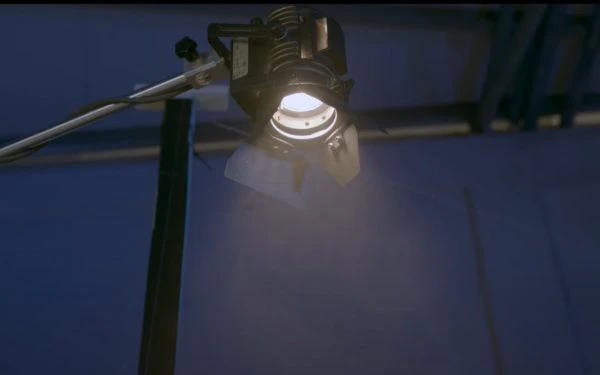

fresnel lights with barn doors light modifiers

The lamp itself sits on a track, between a reflector and the fresnel lens. The reflector sends the light into the lens, which in turn forms it into a beam. By moving the lamp and reflector closer to or farther from the lens, you can adjust whether it acts as a flood or a spot. Do be warned, though: fresnel lights can get very hot.

Flags

flags are light modifiers

In this instance, we’re not talking about national flags. Flags used in photography and filmmaking are there to block light from falling where you don’t want it. You can use a flag to prevent light from spilling onto your background or to temporarily change the shape of the light emitted by your softbox. Even better, flags are simple to acquire or make. If you have a five-in-one reflector with a black side, that will do. So will black paper or cards. If you need something a bit more sturdy or something to cut to shape, pick up some black foamcore. You can secure it in place using clamps or tape.

Gobos

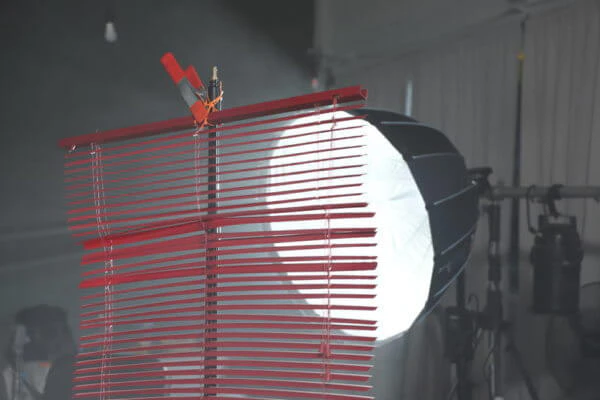

You can use shutters as a gobo

A gobo (sometimes called a cookie) is a cut-out screen or stencil that you slide in front of your light to produce a shaped shadow in your scene. You might want to use a specific logo or pattern if you’re making a promotional video, but gobos can be used more abstractly, too, for example, to mimic light passing through leaves or branches, or just to break up light falling on a background. Even simpler than a gobo, you can use a blind or shutter on a stand in front of a light to mimic light coming through a window.

DIY Light Modifiers

While you have a nice selection of light modifiers, it’s far from an exhaustive list. A light modifier can be anything that modifies light, and you can get really creative with it. If something gives you the light texture or effect you want, use it. A disco ball, a mirror or a plant could give very interesting light textures; on one of our productions, we used a water tank as a sort of a diffuser to get a dreamy effect. Check out one of our 14 Days of Filmschool videos and see how you can play with the texture and shape of your light.

We used a water tank as a light modifier to get a dreamy glow
We used a water tank as a light modifier to get a dreamy glow

You have so many options to manipulate light and great excellent lighting for your videos. Now you just need to go out and experiment with your light modifiers!
